Deskripsi

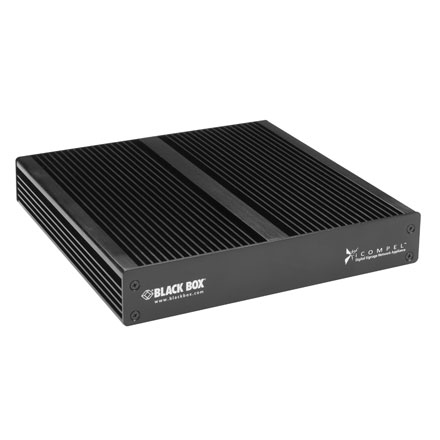

- A high-performing media player for high-quality SMB signage ideal for video walls in corporate and retail applications.
- Controllable via a standard Web browser connection.
- Easy to scale. Use standalone with one screen or across a network to show content on multiple screens.
- Screen content can be updated locally. Instantly add text messages or alerts for an audience.
- Supports resolutions of 3840 x 2160 (4k) at 60Hz H.265.
- HDMI and DisplayPort outputs, VGA/DVI is supported via adapter.
- Set up multizone layouts with each zone playing different media from its own playlist.
- Plays up to two simultaneous videos—great for showing a mix of different video side by side.
- Also supports unlimited zones for text and images, and up to 15 zones for HTML.
- Easy to change and alter layouts and graphical effects with drag-and-drop tools.
- Simple to stream dynamic RSS feeds from the Internet. Supports XML.
- Rotate screen images for either portrait or landscape orientation.
- Highly secure Linux®-based appliance with built-in firewall.
- Fanless design with no noise and no moving parts, Intel I3 processor, 128-GB SSD drive with slim profile for back screen mounting.
- GPIO external device input capabilities for motion detectors, sensors, etc. with adapter (ICOMP-GPIO).
- HD Stream-in, touch and dual-band WiFi options available.
- Warranty: 1 Year Double Diamond™ Warranty (Standard)
Technical Data
CPU Processor — Intel® Core™ i3
System RAM — 8 GB
System Storage — 128 GB SSD
Video Output Resolution —
Digital to 1920 x 1080;
HD to 1080p;
HDMI to UHD at 30fps;
DisplayPort and streaming sources to 3840×2160 (UHD) at 60fps
Supported Zones —
unlimited with one 4K or two HD video zones
Supported Media —
Video: H.265, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, video cropping
Animation: HTML (with JavaScript), HTML cropping and zoom, HTML
Images: JPEG, TIFF, GIF, PNG, BMP
Audio: MPEG-1 (layers 1, 2, and 3), MPEG-2 (AAC), MPEG-4 (AAC), AC3, MP3, WAV
Text: multiple fonts, speeds, colours, and directions. RSS newsfeeds
Internet: HTML (web pages), RSS feeds (with multilingual support), XML files
Streaming: Optional IP video stream-in licence, MPEG/UDP
Clocks: Digital (multilingual and localizable date and time formats)
Connectors —
Video: (1) HDMI F; (1) DisplayPort F
Audio: (2) 3.5-mm jack and HDMI;
USB: (2) USB 2.0, (2) USB 3.0
Ethernet: (1) RJ-45 (10/100/1000 Mbps)
RS232: with optional iCOMP-GPIO adapter
Wireless: internal PCIe card supporting 802.11a/b/g/n access (Wifi-option only)
Cooling — Passive (fanless)
Power — 24.6W (typical consumption) supplied by 19V DC external power supply
Operating Temperature — 0 to 40° C
Size — 3.7H x 22W x 15D cm
Weight — 1.925 kg
Mounting — Optional Screen Mounting Plate
