ATEN CE750A USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)

ATEN CE770 USB VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)ATEN CE680 USB DVI Optical KVM Extender (1920 x 1200@600m)

Rp10.267.500

Local and Remote units connect at distances up to 200 meters using Cat 5e cable
Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
High resolution video – up to 1920×1200@60Hz at 30m,1600×1200@60Hz at 150m, 1280×1024@60Hz at 200m

Stok 2

Kategori: KVM Extenders, KVM Solution Tag: Aten, extender, kvm

Deskripsi

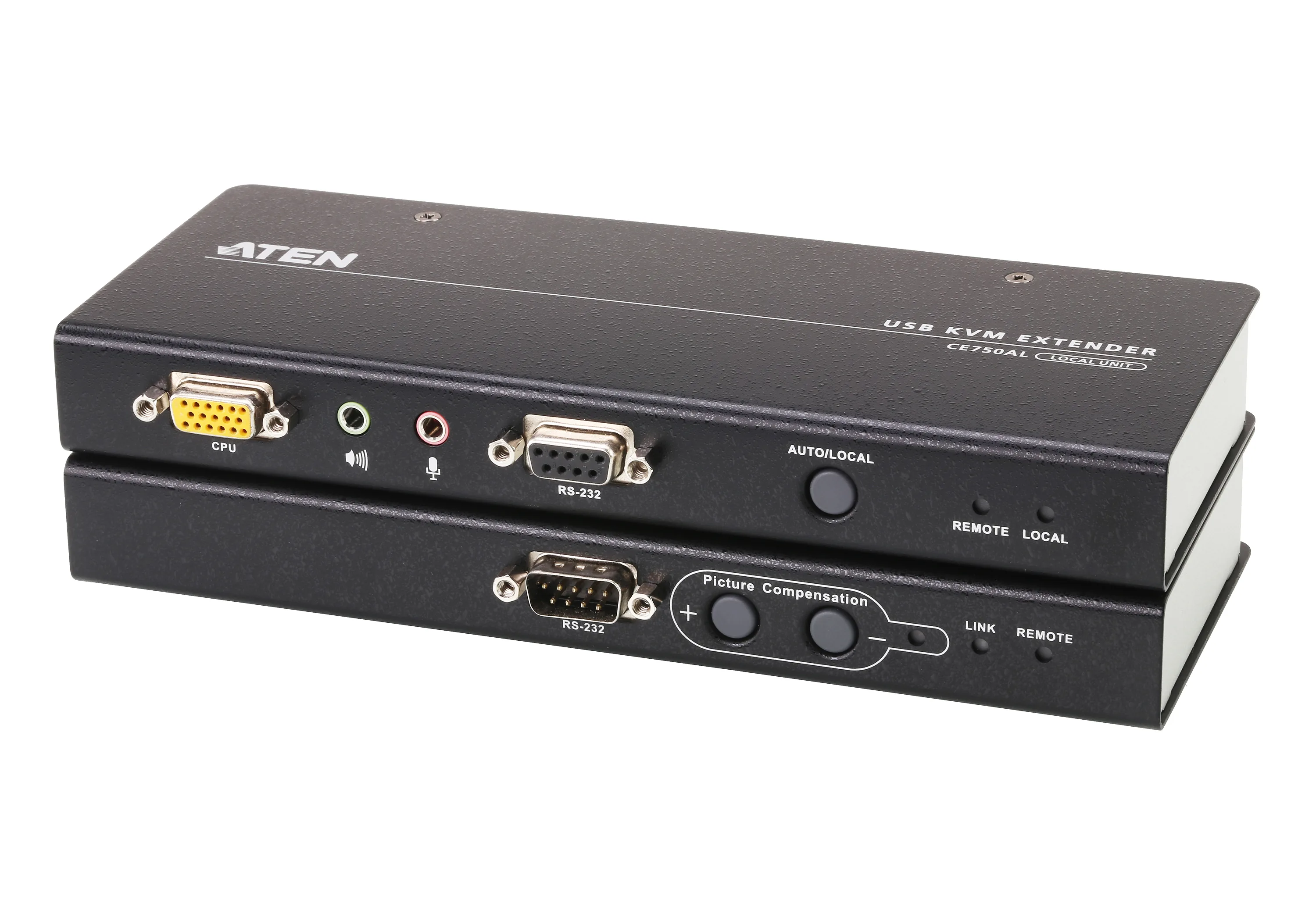

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

Package Contents

1x CE750AL USB KVM Extender (Local Unit)
1x CE750AR USB KVM Extender (Remote Unit)
1x Custom KVM Cable (VGA, USB, Audio; 1.8 m)
2x Power Adapters
1x Mounting Kit
1x User Instructions

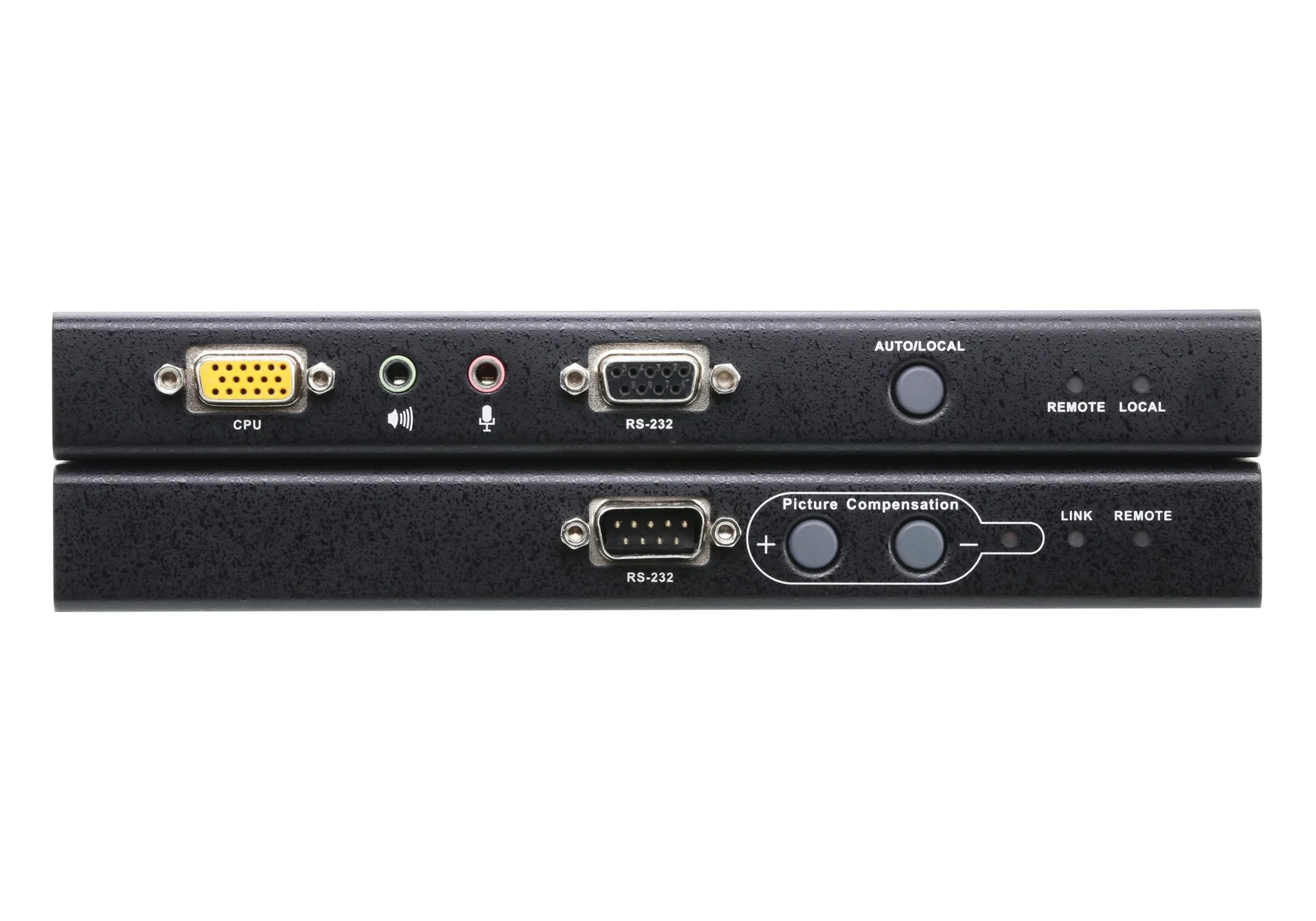

Function	CE750AL	CE750AR
Connectors
Console Ports	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)	2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	1 x SPHD-15 Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)	N/A
RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
Power	1 x DC Jack (Black)	1 x DC Jack (Black)
Unit To Unit	1 x RJ-45 Female (Black)	1 x RJ-45 Female (Black)
LEDs
Remote	1 (Green)	1 (Green)
Link	N/A	1 (Green)
Local	1 (Green)	N/A
Picture Compensation	N/A	1 (Orange)
Pushbuttons
Operating Mode Selection	1 x Pushbutton	N/A
Picture Compensation	N/A	2 x Pushbuttons
Emulation
Keyboard / Mouse	USB	USB
Video	1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m	1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m
Power Consumption	DC5.3V:2.44W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	DC5.3V:3.27W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-50˚C	0-50˚C
Storage Temperature	-20-60˚C	-20-60˚C
Humidity	0-80% RH, Non-condensing	0-80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.47 kg ( 1.04 lb )	0.47 kg ( 1.04 lb )
Dimensions (L x W x H)	20.20 x 8.63 x 2.50 cm (7.95 x 3.4 x 0.98 in.)	20.20 x 8.51 x 2.50 cm (7.95 x 3.35 x 0.98 in.)

Informasi Tambahan

Berat	1,7 kg
