Deskripsi

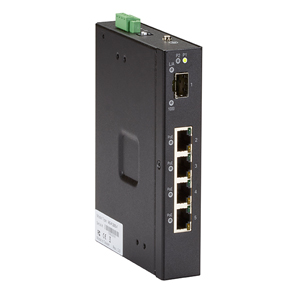

- One SFP port and 4 10-/100-/1000-Mbps RJ45 PoE+ switch ports.
- 4 ports support 802.3at PoE+, power sourcing equipment up to 30W per port.
- The SFP interface supports 100/1000 Mbps fiber SFPs.
- Suitable for dusty or dirty environments with a temperature range between -40 to +75º C.
- Includes DIN rail mount kit.
- Switch delivers features normally found in more expensive switches.
- PoE+ 802.3af and at compliant. Provides up to 30 W per port.
- Use in harsh applications, including factories, oil/gas fields, military vehicles/ships, HVAC controls, security and surveillance, and more.
- Rated for extreme temperatures of -40 to +75° C.
- 10-/100-/1000-Mbps ports are autosensing for speed and duplex.
- Warranty: 1 Year Double Diamond™ Warranty (Standard)
Technical Data
Approvals: CE; FCC Part 15; CISPR 22 (EN55022) Class A; IEC61000-4-2, -3, -4, -5, -6 (Level 3); RoHS (Pb free); WEEE compliant; IEC60068-2-6, -27, -32
Connectors: (4) RJ-45, 10/100/1000-Mbps, auto-negotiation, MDI-MDI-X auto-crossover; (1) 100/1000BASE SFP slot
Dimensions: 5.4”H x 1.1”W x 4.2” D (13.9 x 2.9 x 10.7 cm)
Environmental: Storage: -40 to +185°F (-40 to +85° C)
Flow Control: IEEE 802.3x full-duplex, Back-pressure half-duplex
Humidity: 5 to 95% non-condensing
Jumbo Frames: 9K bytes
MAC Addresses 2K
Operating temperature: -40 to + 75°C (-40 to 167° F )
PoE: IEEE 802.3 af PoE; IEEE 802.3at PoE+
Power Input: Redundant terminals, reverse power protection; 12-58 VDC; PoE: 48-58 VDC; PoE+: 54-58 VDC
QoS: IEEE 802.1p, 4 queues per port
Traffic Shaper: Port-based Port shaping
Weight: 320g
