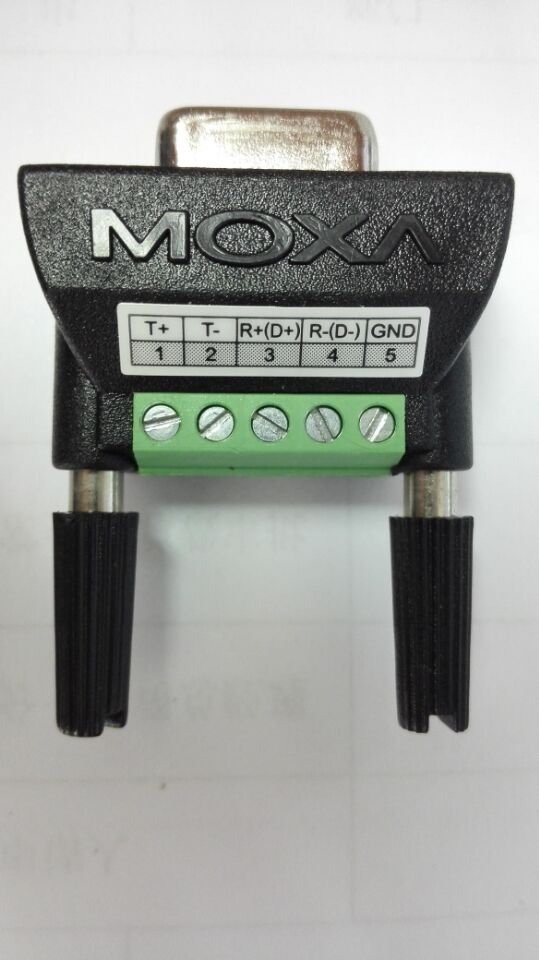

MOXA Mini DB9F-to-TB

Deskripsi

Introduction

Wiring kits with screw-type terminals are designed for use in industrial environments. In particular, the RJ45-to-DB9 adapter model make it easy to convert a DB9 connector to an RJ45 connector.

Highlights

Description
TB-M9: DB9 (male) DIN-rail wiring terminal
ADP-RJ458P-DB9M: RJ45 to DB9 (male) adapter
Mini DB9F-to-TB: DB9 (female) to terminal block adapter
TB-F9: DB9 (female) DIN-rail wiring terminal
A-ADP-RJ458P-DB9F-ABC01: RJ45 to DB9 (female) adapter
TB-M25: DB25 (male) DIN-rail wiring terminal
ADP-RJ458P-DB9F: RJ45 to DB9 (female) adapter
TB-F25: DB9 (female) DIN-rail wiring terminal

Wiring
Serial cable, 24 to 12 AWG

Input/Output Interface
Connector
ADP-RJ458P-DB9F: DB9 (female)
TB-M25: DB25 (male)
A-ADP-RJ458P-DB9F-ABC01: DB9 (female)
ADP-RJ458P-DB9M: DB9 (male)
TB-F9: DB9 (female)
TB-M9: DB9 (male)
Mini DB9F-to-TB: DB9 (female)
TB-F25: DB25 (female)

Environmental Limits
Operating Temperature
TB-M9, TB-F9, TB-M25, TB-F25: -40 to 105°C (-40 to 221°F)
Mini DB9F-to-TB, A-ADP-RJ458P-DB9-ABC01: 0 to 70°C (32 to 158°F)
ADP-RJ458P-DB9M, ADP-RJ458P-DB9F: -15 to 70°C (5 to 158°F)
