PLANET POE-E201 Power over Gigabit Ethernet Extender

Deskripsi

Introduction

PLANET POE-E201 is a newly-designed simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m.

No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E201 is designed as the extender to transmit both Gigabit Ethernet data and high power PoE power over another distance of 100m. By daisy-chaining multiple POE-E201s, distance can be tripled or quadrupled to meet your requirements

Highlights

Interfaces

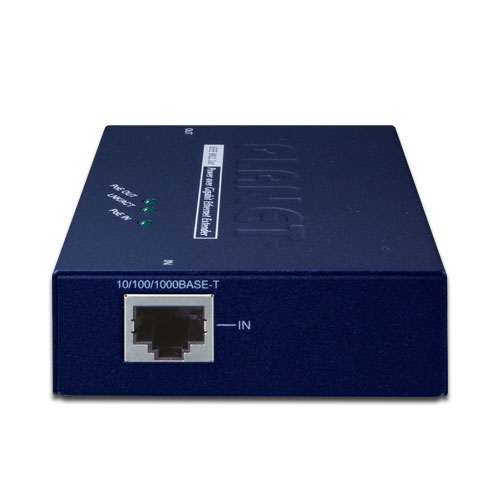

LAN IN 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connector
LAN OUT 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connector
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type Mid-span/Type B
PoE Power Output 52V DC, 510mA, max. 26 watts
Power Pin Assignment 4/5(+), 7/8(-)
Maximum Distance 500m with daisy-chain installation
Hardware Specifications
Data Rate 10/100/1000Mbps
Switch Architecture Store-and-Forward
Switch Throughput 10Mbps:14880pps@64Bytes
100Mbps:148810pps@64Bytes
1000Mbps:1488000pps@64Bytes
Maximum Frame Size 1552Bytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

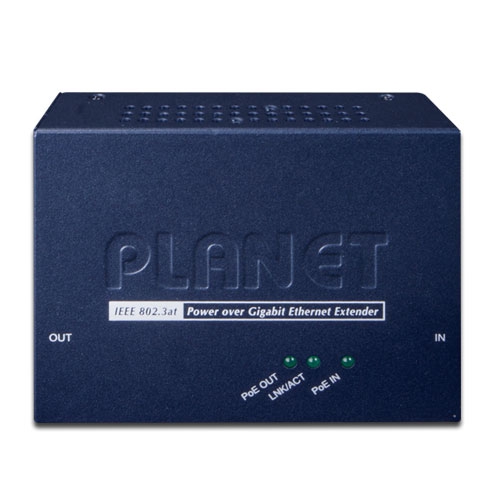

LED Indicators 　　■ 1 x PoE IN (Green)
　　■ 1 x LAN Data (Green)
　　■ 1 x PoE OUT (Green)
Protection ESD (Ethernet): 2KV
Surge (EFT for power) : 2KV
Power Requirements IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption 3.2 watts (system maximum)
Enclosure & Installation Metal & wall mounting
Network Cable 10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)
100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)
1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m, 328ft)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standard Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3x Flow Control
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Ordering Information
POE-E201
IEEE 802.3at Power over Gigabit Ethernet Extender
Accessories
RKE-DIN-C
DIN-rail Mounting Kit
