Deskripsi
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
802.3i, 802.3u, 802.3x, 802.3az
2-pin industrial DC power socket
9 – 30 VDC
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Idle: 0.3 W / Max: 0.9 W
5 x RJ45 ports, 10/100 Mbps
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
1 Gbps
2K entries
2048 bytes
| Ordering Information | |
|---|---|
TSW010000000 |

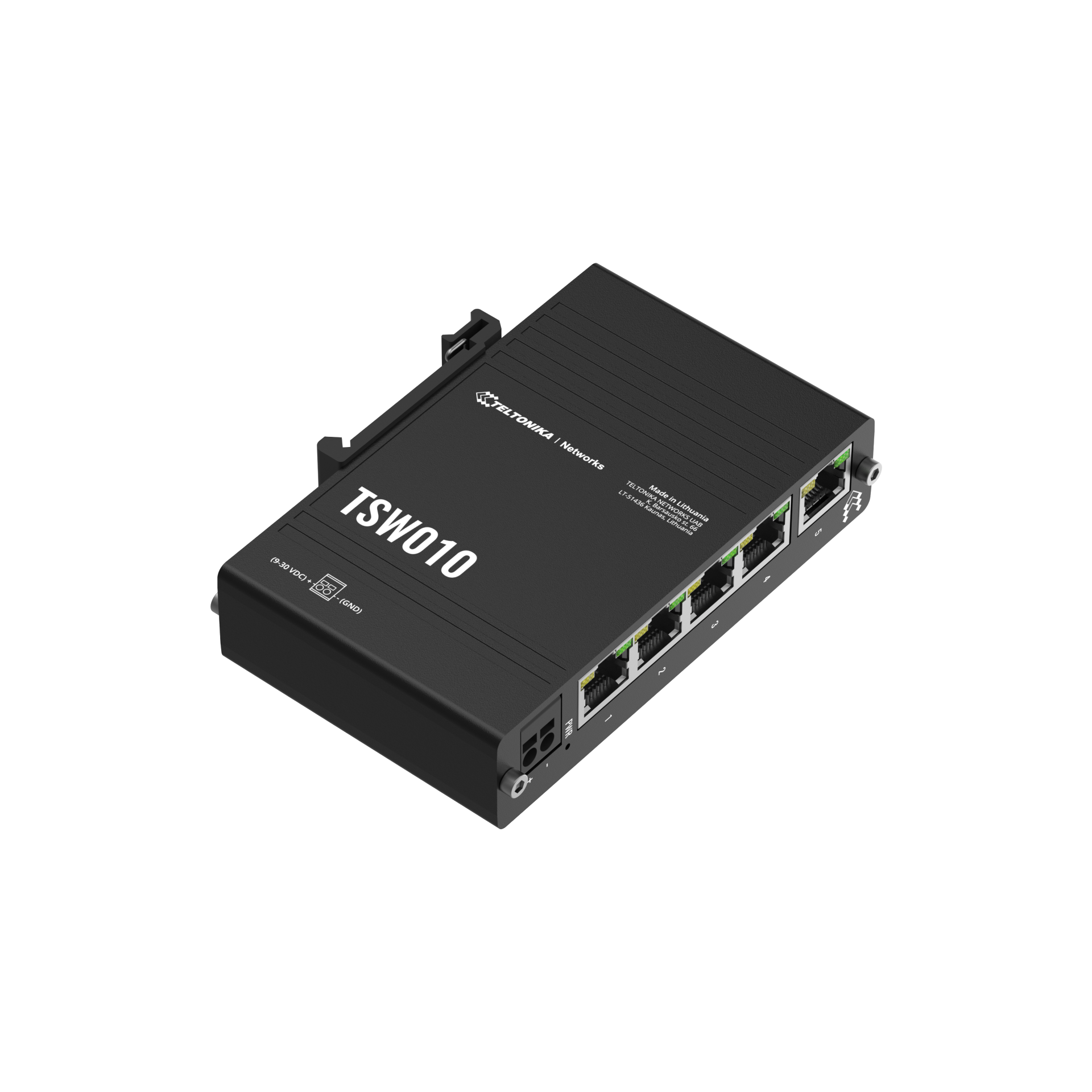

Unmanage Switch 5port 10/100Mbps, Power 9-30Vdc, -40 °C to 75 °C |
